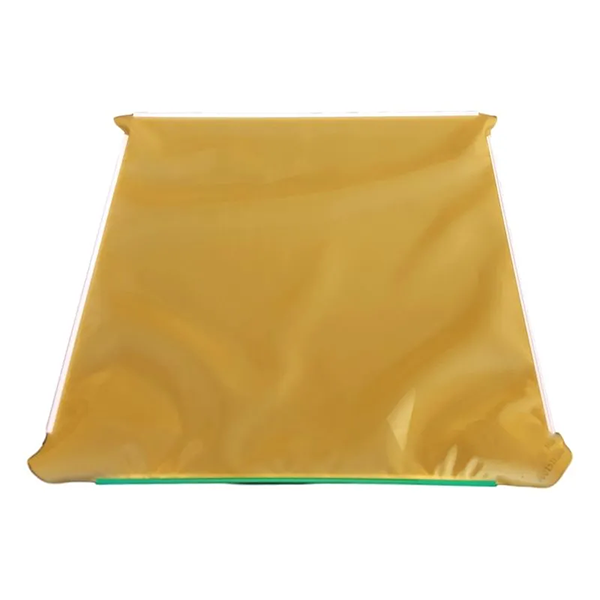

Shur-Loc Mesh Panel EZ 23" x 31" - 355/34 Yellow
Precision-cut 355-count yellow screen printing mesh panel with a 34-micron thread diameter, designed for Shur-Loc E-Z Frames and high-resolution printing applications requiring exceptional detail and controlled ink deposits.
Characteristics
The Shur-Loc Mesh Panel EZ 23" x 31" – 355/34 Yellow is a professional-grade, precision-cut mesh panel designed for use with compatible Shur-Loc E-Z Frame systems. Shur-Loc's panel system allows printers to stretch and replace mesh in-house without permanently gluing the mesh to the frame, helping simplify screen preparation and replacement.
Featuring a 355 threads-per-inch mesh count with a 34-micron thread diameter, this fine yellow mesh is suited to applications requiring excellent image definition and controlled ink deposits. The second number in the mesh specification represents the thread diameter measured in microns.
The high mesh count makes this panel particularly useful for fine halftones, small text, intricate line work, detailed graphics, and other high-resolution screen printing applications where maintaining stencil detail is important. The yellow mesh helps reduce light scattering during exposure, making fine-detail stencil production easier to control.
Shur-Loc E-Z Frames are designed to let operators install and stretch replacement mesh quickly while achieving optimal tension. Shur-Loc states that E-Z screens can be stretched in approximately 2–3 minutes, and the mesh panel can be removed and replaced when needed.
- Precision-cut 23" x 31" mesh panel
- 355 threads per inch
- 34-micron thread diameter
- Yellow mesh for improved exposure control
- Designed for compatible Shur-Loc E-Z Frames
- Fine mesh structure for high-resolution printing
- Supports fine halftones and detailed graphics
- Helps provide controlled, lighter ink deposits
- Mesh panel can be removed and replaced
- Designed for fast in-house screen stretching
- No permanent mesh adhesive required with the E-Z Frame system
- Shur-Loc mesh panels are manufactured in the USA
- Install the panel according to the recommended Shur-Loc E-Z Frame stretching sequence.
- Bring the mesh to the appropriate working tension for the specific mesh construction.
- Follow the appropriate Shur-Loc stretching and tension guidance for the mesh manufacturer being used.
- Because 355/34 is a fine mesh configuration, select an emulsion and coating technique appropriate for high mesh counts and fine-detail stencil reproduction.
- Maintain consistent tension across the screen and verify tension before coating and printing.
- Optimize exposure settings for yellow mesh and perform an exposure test when establishing production settings.
- Avoid excessive squeegee pressure during production to help preserve fine image detail.
- Maintain proper off-contact, ink viscosity, squeegee selection, and print pressure for consistent results.
- Handle the fine 34-micron threads carefully during installation, cleaning, and reclaiming.
- Fine halftones
- Highly detailed graphics
- Small text and lettering
- Intricate line work
- Fine-detail spot-color printing
- Controlled ink deposits
- High-resolution stencil work
- Applications requiring lighter ink deposits
- High-detail textile and graphic screen printing
- Print shops using reusable Shur-Loc E-Z Frames
