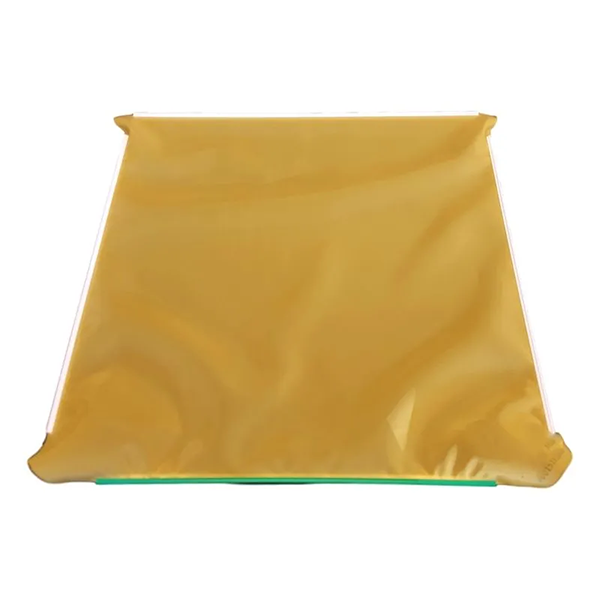

Shur-Loc Mesh Panel M3 23" x 31" - 305 Yellow
Professional 305-count yellow mesh panel designed for Shur-Loc M3 23" x 31" screen printing frames, providing high-resolution image reproduction, controlled ink deposits, and dependable tension for detailed printing applications.
Characteristics
The Shur-Loc Mesh Panel M3 23" x 31" – 305 Yellow is a precision screen printing mesh panel designed for use with compatible Shur-Loc M3 23" x 31" frames. The preconfigured panel format helps simplify screen assembly while providing the consistent mesh positioning and tension required for professional production environments.
With a 305 mesh count, this panel is well suited for high-detail screen printing applications where a thin, controlled ink deposit is required. The fine mesh opening supports detailed artwork, small text, fine lines, halftones, and other graphics requiring excellent image definition.
The yellow-dyed mesh helps reduce light scattering during exposure, supporting sharper stencil edges and improved reproduction of fine details. This makes the 305-count panel particularly useful when working with detailed artwork and higher-resolution stencil applications.
Designed as part of the Shur-Loc M3 modular screen system, the mesh panel provides a convenient alternative to manually stretching conventional mesh. When properly installed and tensioned, it creates a stable printing surface for consistent registration and repeatable production.
- 305 mesh count for fine-detail screen printing
- 23" x 31" panel size
- Designed for compatible Shur-Loc M3 frames
- Yellow-dyed mesh helps reduce light scatter during exposure
- Supports high-resolution stencil and image reproduction
- Excellent for fine lines, small text, and detailed graphics
- Suitable for halftone and high-detail artwork
- Supports controlled, thinner ink deposits
- Designed for consistent screen tension and dimensional stability
- Provides a stable printing surface when properly tensioned
- Preconfigured panel design simplifies screen preparation
- Supports consistent registration and repeatable production
- Suitable for professional and production screen printing environments
- Make sure the mesh panel is properly installed and evenly tensioned before coating with emulsion.
- Verify final screen tension with a calibrated tension meter before beginning screen preparation.
- A 305 mesh count is best suited for detailed artwork and applications requiring controlled ink deposits.
- Yellow mesh is beneficial for high-resolution stencil exposure because it helps minimize light scattering through the mesh.
- Select an emulsion and coating technique appropriate for fine mesh counts and the ink system being printed.
- Optimize exposure settings for the yellow mesh, emulsion, stencil thickness, and exposure equipment being used.
- Verify that ink viscosity is appropriate for a 305-count screen before beginning production.
- Check screen tension periodically to maintain consistent registration and print quality.
- Clean and reclaim the mesh using chemicals compatible with the mesh, stencil, and ink system.
- High-resolution graphics
- Fine-detail artwork
- Fine lines
- Small text and lettering
- Detailed logos
- Halftones
- High-resolution stencil applications
- Controlled, thinner ink deposits
- Applications requiring excellent image definition
- Precision screen printing
- Manual screen printing presses
- Automatic screen printing presses
- Professional production environments
